Tankoa announces the sale of the new S502 Elettra
Tankoa announces the sale of the new S502 Elettra
Designed by Florence based Francesco Paszkowski, the second fifty meter Tankoa under construction model S502 Elettra is in terms of style a sister-ship to the first 50 meter “Vertige” delivered last summer. As onboard “Vertige”, she reveals a balanced and timeless style with a layout specifically designed for optimal circulation. Owners and guests can move from deck to deck without interference with crewmembers who have their own dedicated pathways for servicing the yacht, providing complete privacy for owners and guests.
But the main innovation onboard this new 50m superyacht is her hybrid propulsion system with four different operation modes:
DIESEL ELECTRIC MODE. In this operation mode, the electric motors are powered by the two variable speed generators, allowing for a 10.5 knots speed and a range of 4,900 nm.
HYBRID MODE. One of the two main engines drives feeds the same shaft electric motor to generate electrical power to run the second electric motor for propulsion and hotel load.
At 12 knots, the yacht will have a cruising range of approx. 4,000 nm. The two diesel generators are inactive in this mode.
TRADITIONAL MODE. The yacht can sail at 17 knots using both main diesel engines for propulsion and a diesel generator for onboard services.
FULL-SPEED MODE. With both main engines and generators supplying power to the two electric motors and for hotel loads, the yacht will reach a top speed of 18 knots.
On the lower deck Elettra will be equipped with Gym and Beach Club, three VIP cabins with king size beds and two guest cabins with twin berths, plus crew quarters and service areas.

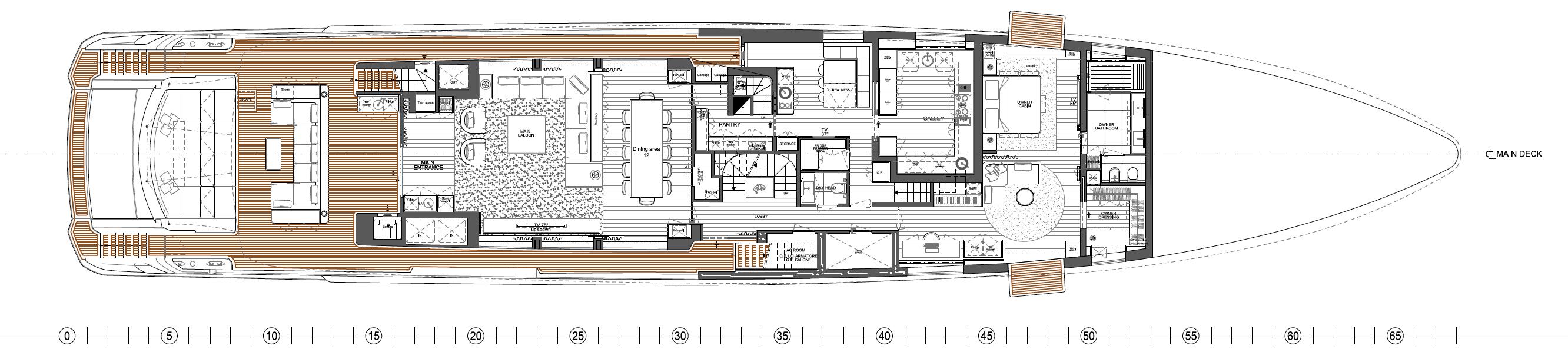

On the main deck, the cockpit comes with an oversized sunbed, reversed U-Shaped sofa, coffee tables and a bar. On the same deck level, the interior comprises the spacious salon, galley, dining room and sumptuous master suite with office and day lounge equipped with fold-down balconies on both sides.
The upper deck was designed around spacious outdoor areas for guest’s relaxation, with a dining table and access to the comfortable sky-lounge. The foredeck includes a solarium area and open-air lounge, all designed to offer the guests with maximum privacy.
Comfort also reigns on the fly-deck, with relaxation areas that include sofas, sun-beds, up & down tables, a bar and a large Jacuzzi.
S502 ELETTRA - SPECIFICATIONS
Hull type Twin-Screw Motor Yacht
Classification Lloyd’s (MCA LY3)
Hull construction Aluminum
Superstructure Aluminum
Project engineer Studio Francesco Rogantin
Exterior Designer Francesco Paszkowski Design S.r.l. (Firenze)
Interior Designer Francesco Paszkowski e Margherita Casprini
DIMENSIONS
Length overall 49.90 m (163’8’’)
Maximum beam 9.40 m (30’10”)
Draft 2,21 mt (7’3”)
Displacement at full load 391 T approx.
GRT 496 GT approx.
SPEED AND RANGE
Top speed at half load 18 knots
Range at 12 knots > 4.000 nm
Fuel capacity 57,300 l
Fresh water capacity 16,200 l
PROPULSION
Main engines 2 x MTU 8V4000M54
Maximum power 2 x 895 kW
Electric motors 2x300 kW
Propellers Fixed Pitch propellers
Generators 2 x 250 kW variable speed
Bow Thurster VT Naiad, Electric drive 100 kW
Stabilization systems VT Naiad, electric, at anchor
